Product Code: PCA3CAF3

TGB Blade 520SL IRS 4x4 EPS Grey Utility Agricultural Quad Bike In Stock

£5,899.00
0% FINANCE AVAILABLE
For this item please order before 10am for same day despatch.
Interest Free Credit available on Selected Items

Simply add your products & services to your basket then continue through the checkout as normal. On the confirmation page, when you are prompted to "Complete Order" select the "Finance Available" button to proceed to our application screen. Only 5 minutes to complete with an instant decision! Interest Bearing Finance is available when spending over £300 and Interest Free Credit with a Interest Free Credit - "0% Finance Available" applicable product added to your Basket. T&C's

Funbikes are proud to announce that they have now been appointed official TGB Dealer for the Leicester LE Postcode area.

If you are looking to purchase a TGB ATV from outside the Leicestershire area, then please visit www.dualways.com to locate your nearest authorised dealer.

TGB is one of the World’s leading ATV brands and has over 30 years’ experience in ATV manufacture and development. If you are looking for the ultimate road legal quad brand, then TGB is the one for you.

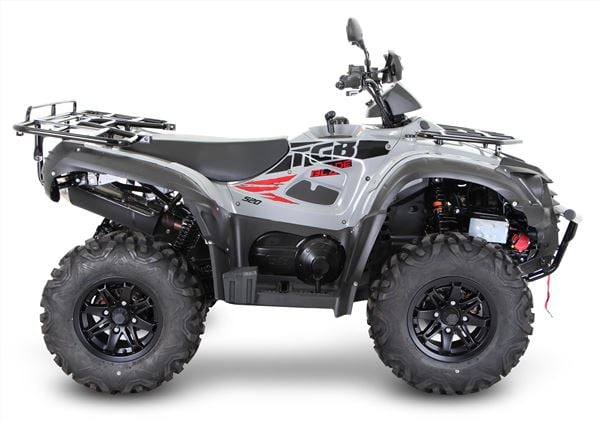

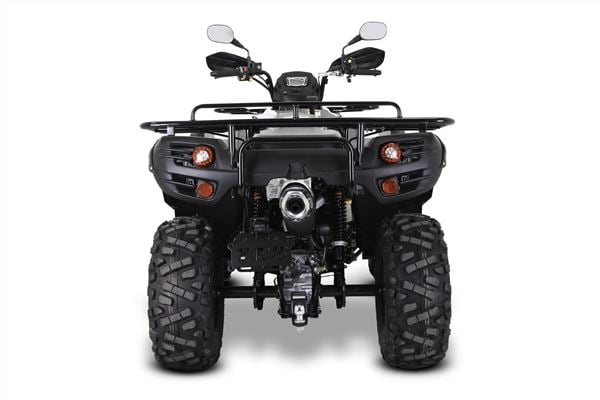

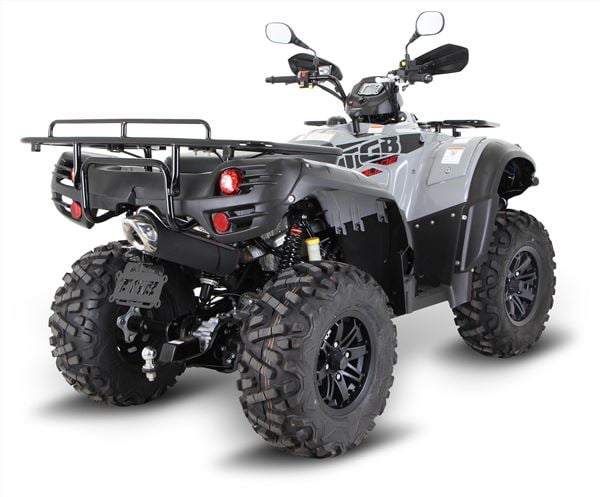

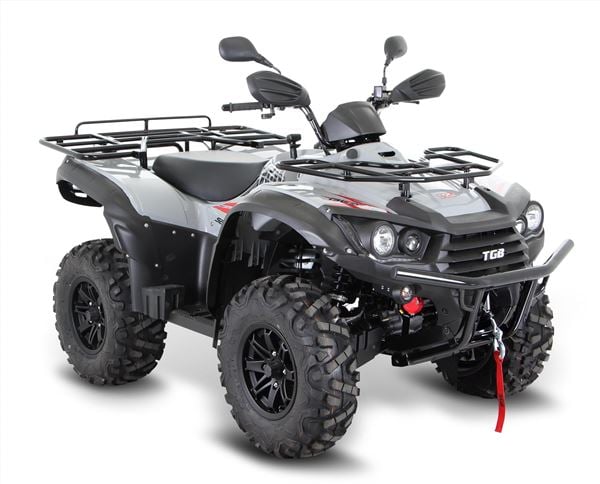

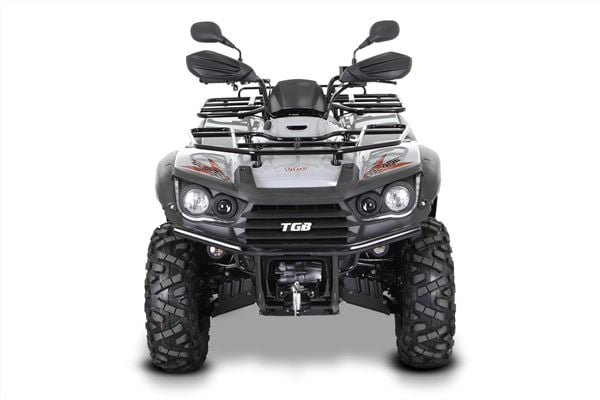

TGB Blade 520SL IRS 4x4 EPS Grey Utility Agricultural Quad Bike

The Blade series has been sold worldwide now for over 20 years. The 520SL is the latest edition to the agricultural lineup.  A combination of elements developed over a decade of hard work within the agricultural industry, the 520SL boasts a long list of key features.  This workhorse ATV is ideal for any agricultural situation.

Powered by the tried and tested TGB 503cc high torque engine, but now equipped with Electronic fuel injection.

The Blade 520SL is T3 homologated so can be registered for road use.

Two Year Warranty

SPECIFICATIONS

Bore & Stroke 92 X 75.6 mm
Capacity 503cc
Clutch Automatic - CVT
Compression Ratio 10.2
Cooling Liquid Cooled
Drive Type 2/4 Wheel Drive Selectable
Electrical Outlet Connector DC 12V 10A 120W
Engine Type 4-Stroke Single Cylinder
Final Drive Shaft
Front Brakes Disc
Front Shock Absorbers Preload Adjustable Hydraulic
Front Suspension Fully Adjustable
Front Tyre Size AT25 x 8-12
Front Wheel Size 12"
Fuel System EFI - Electronic Fuel Injection
Fuel Tank Capacity 18 Litres
Gear Selection L/H/N/R
Gearbox Automatic Gears
Ground Clearance 305 mm
Max Power 44 HP (OFF ROAD)
Max Torque 46.1 NM
Overall Height 1502 mm
Overall Length 2120 mm
Overall Width 1240 mm
Rear Brakes Disc
Rear Shock Absorbers Preload Adjustable Hydraulic
Rear Suspension Swing Arm
Rear Tyre Size AT25 x 10-12
Rear Wheel Size 12"
Start Type Electric Start
Tow Hitch Yes
Transmission Type V-belt CVT Automatic
Tyre Brand Innova
Unbraked Towing Capacity 850 kg
Warranty 2 Years
Wheel Size 12 Inch
Wheelbase 1290 mm



support icon

Support

We offer a full support service with FREE lifetime telephone technical advice and stock standard & performance parts. Servicing & Maintenance checks are also available - Call for details.

Build up icon

Assembly

This model comes with FREE full assembly and Pre Delivery Inspection.

Warranty icon

Warranty

Standard 2 year Warranty.

Advice icon

Advice

A mechanically able person will be required to carry out the assembly and long-term maintenance of this product. Maintenance will be required to service the bike and fit parts to this product as usage requires. Please consider these requirements before purchasing the item. We do offer a FREE support line where our mechanics will diagnose problems and help you source any required parts, but you will be required to fit those parts and assist in the diagnosis.
